Product Overview
FFS-80M Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more
flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently.
Product Advantages
* 1s boot up, 7s splicing, 20s heating
* Specially designed for FTTH projects
* 4 motors active V-groove design
* Small size and light weight, easy to carry
* Work bench windproof cover, fiber cleaver could be placed
* 3in 1 multi-function clamps for naked fiber/pigtail/drop cable
* Inductive automatic heater, identifier fibers intelligently
FFS-80M Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more
flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently.
Product Advantages
* 1s boot up, 7s splicing, 20s heating
* Specially designed for FTTH projects
* 4 motors active V-groove design
* Small size and light weight, easy to carry
* Work bench windproof cover, fiber cleaver could be placed
* 3in 1 multi-function clamps for naked fiber/pigtail/drop cable
* Inductive automatic heater, identifier fibers intelligently
|
Applicable Fiber
|
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),
NZDS(ITU-T G.655)，EDFA, others(including G.657) |
|
Diameter Of Cladding
|
80 -150μm
|
|
Diameter Of Coating
|
160-900μm
|
|
Typical Splice Loss
|
SM: 0.03dB, MM: 0.02dB, DS: 0.05dB, NZDS: 0.05dB
|
|
Return Loss
|
>60dB
|
|
Fibe Cleaved Length
|
5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
|
|
Splicing Program
|
40 groups
|
|
Operate Mode
|
Automatic/Manual
|
|
Auto-heating
|
Available
|
|
Typical Splicing Time
|
7 seconds
|
|
Typical Heating Time
|
20 seconds for 60mm and 40mm shrinkable sleeves
|
|
Fiber Magnification
|
250X (X or Y view), 125X (X and Y view)
|
|
Display Screen
|
2 CMOS cameras, 4.3 inch color LCD monitor
|
|
Records Storage
|
5000 groups data and 100 group images
|
|
Loss Evaluation
|
Available
|
|
Tension Test
|
>2.2N
|
|
Interface
|
GUI menu interface, easy for operation
|
|
Battery
|
5200mAh Li-battery, typical 250 cycles splicing and heating, pluggable inner Li-battery
|
|
Power Supply
|
Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V
|
|
Electrodes Life
|
More than 5000 ARC discharges, can be replaced conveniently
|
|
Ternimal
|
USB2.0 port, for uploading splicer results and upgrading software
|
|
Operating Conditions
|
Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage Temperature: -40℃~+80℃,Wind speed: Max 15m/s
|
|
Dimension
|
200mm(L) * 123mm(W) * 95mm(H)
|
|
Weight
|
1.60kg (including battery)
|
20S automatic heating.
Automatic heating, adjustable temperature, preset multiple modes.

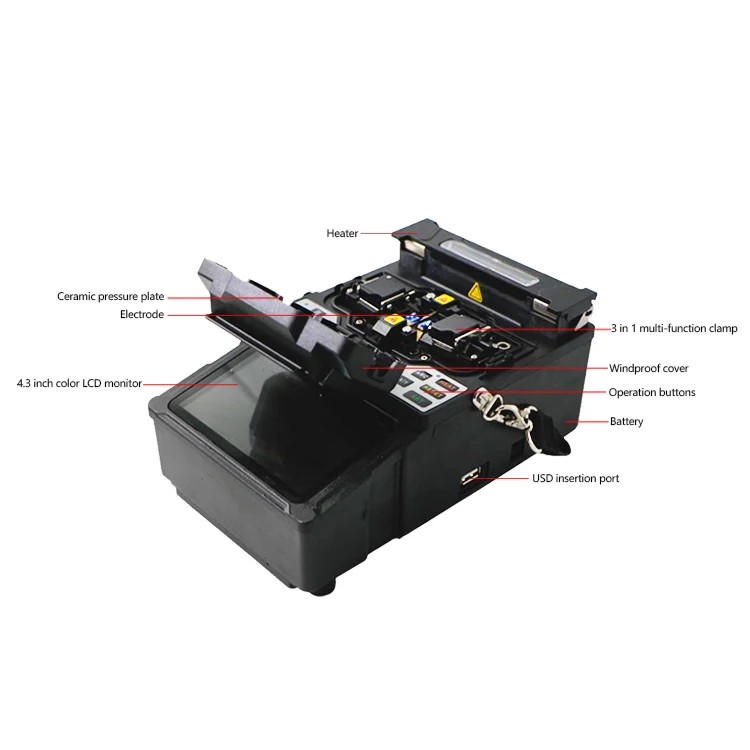

3 in 1 multi-function clamps（drop cable、pigtail、Bare fiber）
The clamp has been optimized for multiple generations, and the clamping effect is good, and there will be no broken fiber or offset.
large capacity battery.
5200mAh Li-battery, typical 250 cycles splicing and heating.
